We are professional on 1-6 layers PCB fast-turn production for sample and small batch.The
factory is at the heartof the Pearl River Delta circuit board industry cluster.The products are
widely used in industrial control, communications,new energy, automotive,medical
equipment, security, aerospace and other fields.

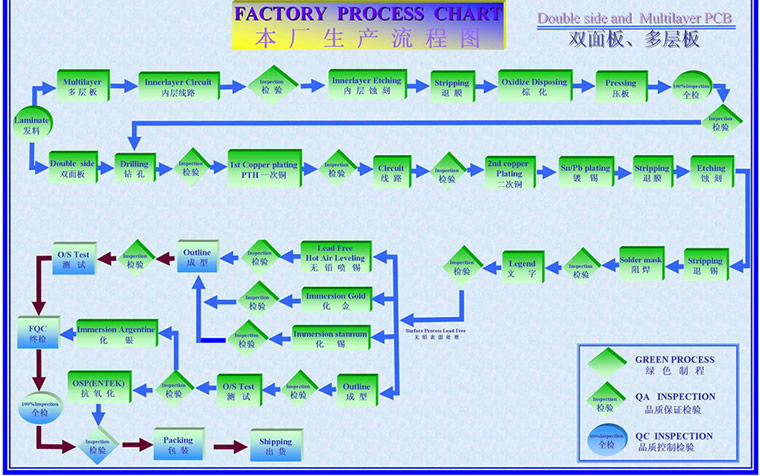

PCB production process
Capability
项 目/Item
加工能力/Technical Parameter
层数/Layer
1-6层
外形尺寸精度/Outline size tolerance
±0.2mm
板厚范围/Thickness
0.6/0.8/1.0/1.2/1.6/2.0 mm
板厚公差/Thickness Tolerance
±10%
成品外层铜厚finished copper thickness of outer layer
1OZ/2OZ
成品内层铜厚finished copper thickness of inner layer
35um/50um
最小线宽线距min. Trace width/spacing
3/3mil
最小孔径/机器钻
Min. Drilling hole
0.2mm
半孔工艺最小半孔孔径min. Half-hole dimension
0.5mm
Delivery
层数
layer
正常交期
standard delivery
加急
fast delivery
单双面1-layer&2-layer
4--5天
8h，12h，24h
四层板4-layer
6--8天
12h，24h，72h
六层板6-layer
8--10天
72h，96h
铝基板Alu board
4--5天
12h
小批量交期 delivery with small batch
5平米内 0-5㎡
6~8天
10平米内 5-10㎡
6~8天
10平米以上 above 10㎡
9~10天
Package type:
PCB: Vacuum + foam + carton packaging
carton packaging
L（CM）
W（CM）
H（CM）
31.00
26.00
25.00
26.00
21.00
19.00

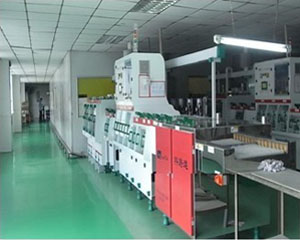

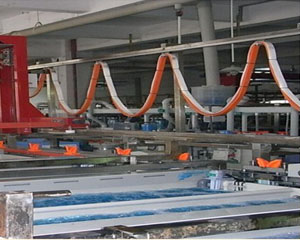

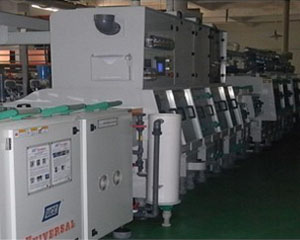

生产设备Production Equipment
|
|
|
|
曝光机Exposure machine |
蚀刻机etching equipment |
|
|
|
|
数控锣边机CNC cutting machine |
数控钻孔机CNC drilling machine |
|
|
|
|
成型机 routing equipment |
显影机Developing |
|
|
|
|
自动沉铜线PTH production line |
自动电镀线plating copper production line |
